Speedbinder Parts

£1.63£344.96

Spare Parts for the Flexorand Speedbinder.

Confusingly there are two versions of the parts manual.
there is an older photographed parts manual with part numbers that are prefixed with PBL this is for Spellbinders produced between 1990 and 2018, and a newer exploded diagram for machines between 2018 and 2022. All parts are available, If a part is not listed in the drop down box, please contact us and we’ll get you a price.

We are beginning to  stock most of these items, if it is in stock it will be sent out usually within 1 working day, if they are not in stock then they will be added to our next delivery from Germany, so lead times are likely to be 2-3 weeks. if you need it quicker than this, again contact us and we will calculate a shipping price direct from Germany.

Some parts have options for 22mm folders and 122mm folders. If your speedbinder has been modified for the wider 122mm tapes then your should choose the part for the 122mm folders regardless of the size of tapes you are currently using.

Description

Part book_Speedbinder machine_new_1-1 Part book_Speedbinder machine_new_2-2 Part book_Speedbinder machine_new_3-3 Part book_Speedbinder machine_new_4-4 Part book_Speedbinder machine_new_5-5 Part book_Speedbinder machine_new_6-6 Part book_Speedbinder machine_new_7-7 Part book_Speedbinder machine_new_8-end

PBL parts (1990-2018)

to download all the pages click here

FLEXORAND_Speedbinder_1990-2018 page 1 FLEXORAND_Speedbinder_1990-2018 page 2 FLEXORAND_Speedbinder_1990-2018 page 3 FLEXORAND_Speedbinder_1990-2018 page 4 FLEXORAND_Speedbinder_1990-2018 page 5 FLEXORAND_Speedbinder_1990-2018 page 6 FLEXORAND_Speedbinder_1990-2018 page 7 FLEXORAND_Speedbinder_1990-2018 page 8 FLEXORAND_Speedbinder_1990-2018 page 9 FLEXORAND_Speedbinder_1990-2018 page 10 FLEXORAND_Speedbinder_1990-2018 page 11 FLEXORAND_Speedbinder_1990-2018 page 12 FLEXORAND_Speedbinder_1990-2018 page 13 FLEXORAND_Speedbinder_1990-2018 page 14 FLEXORAND_Speedbinder_1990-2018 page 15 FLEXORAND_Speedbinder_1990-2018 page 16

Additional information

Parts

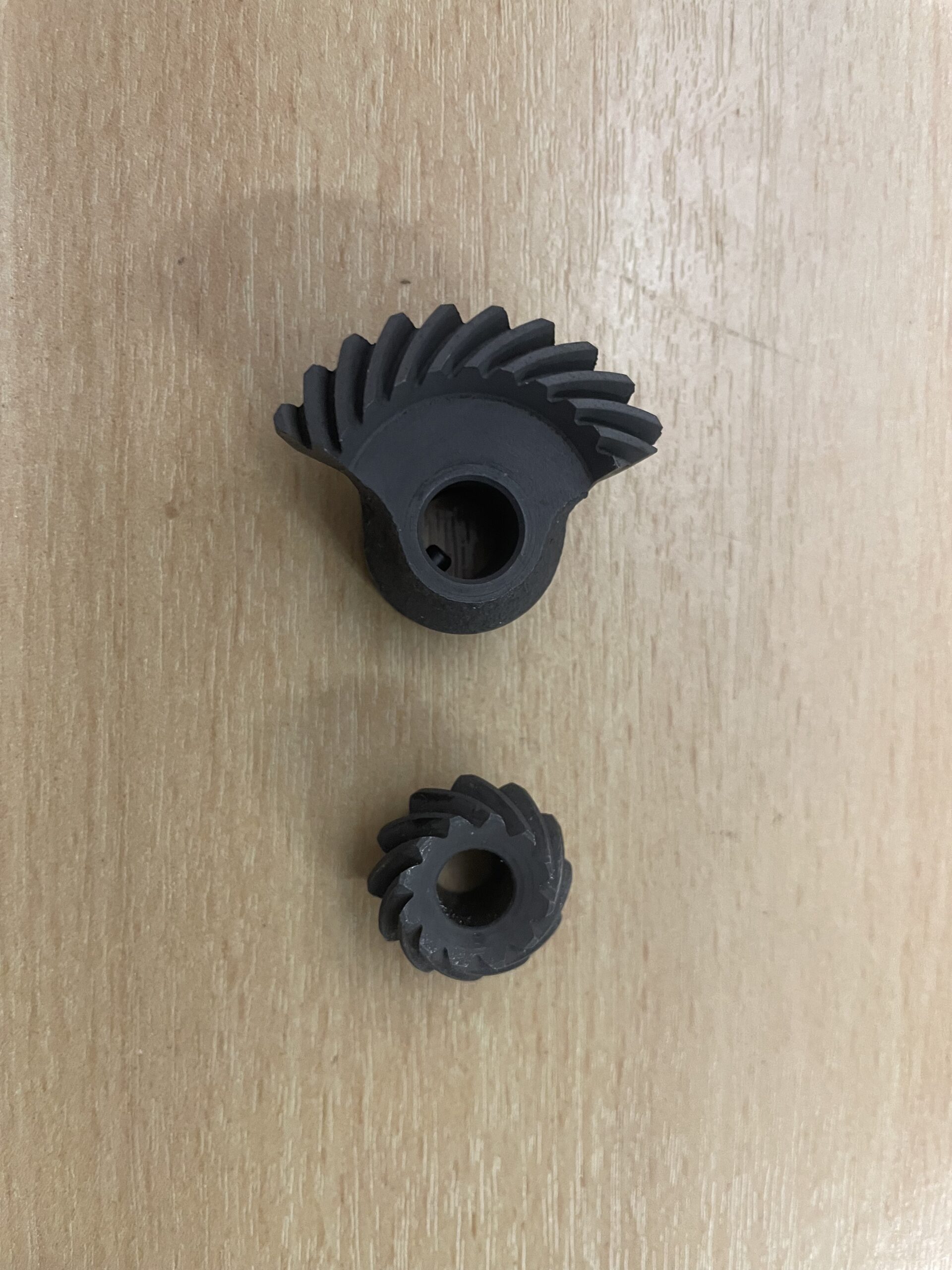

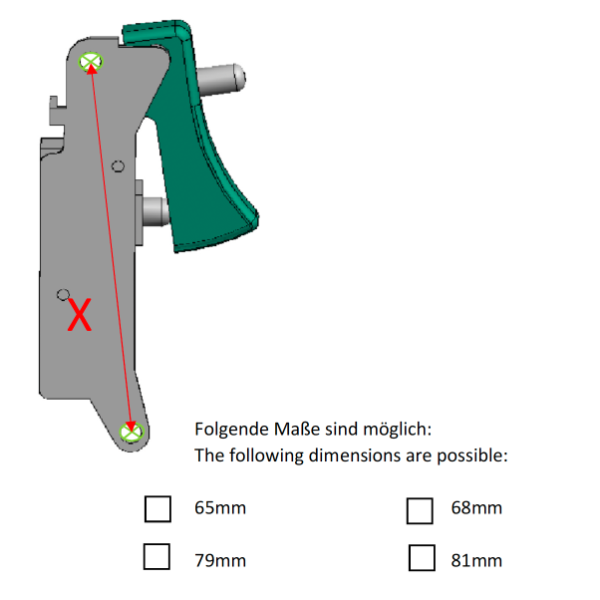

1990 onwards (PBL779-2) – motor with silver coloured metal case, 1990-2018 (PBL112 and PBL115) Pair of gears, must be replaced as a pair, 1990-2018 (PBL200) Belt Cover, 1990-2018 (PBL227) Belt Cover Screws, 1990-2018 (PBL728) Trigger Switch Black, 2018 onwards 161-1E Belt Cover, 2018 onwards 163 Belt Cover Screws, 101 (PBL101) – Shuttle Race, 102 (PBL103) – Retainer Ring 22mm folders, 102m (PBL103m) – Retainer Ring 120mm folders, 102s (PBL103d) Race Cap Spring, 7 (PBL9) – Machine Head Spring, 64 (PBL137) Forked Rod Hinge Screw with Nut., 76 (PBL71.3) – Tension Dial Assembly, 76S (PBL765.3) – Thread Tensioner Spring, 78 (PBL73-2) – Thread Guide, 116 (PBL104) – Shuttle Hook, 105NS (PBL107) – shuttle driver asset, 131 (PBL703) – Screw for 419 needle plate (each), 117 (PBL105) – Bobbin Case, 118 (PBL107s) Driver Spring, 118C (PBL107C) Pair of screws for Driver spring (118/PBL107s), 121 (PBL120) Screw for Lower Shaft Front Bushing, PBL183 Lightbulb, PBL183LED – LED Lightbulb, 152 (PBL197) – Top Cover Screw, 153 (PBL198) top thread guide, 419 (PBL702.2) – Needle Plate, 456 (PBL701) Screw for Needle Bar, ???(PBL 707-DT) 22mm folder, 461 (PBL711) thumb screw, PBL755-2 – Belt (motor), PBL755-2L – Belt (handwheel), PBL 724B – Axis for Pulley Belt, PBL 746/8 – Bracket for 22mm Tape Plate, PBL 747/8 – 22mm Tape plate, PBL748/8 – Tape Locator Sprung Screw., PBL768 – spacer, Pair of Carbon Brushes – for motors with metal casing, Pair of Thread Guide, Hinge Screw and Spring for 120mm Tape folder, 2018 onwards 429NS – Electric Trigger Switch
